ASTM F1281 Standard Specification for Crosslinked Polyethylene/Aluminum/Crosslinked Polyethylene (PEX-AL-PEX) Pressure Pipe
Introduction
In the modern plumbing, HVAC, and hydronic heating industries, choosing the right piping material is vital to ensuring system reliability, safety, and cost-efficiency. Among the many piping materials available, Crosslinked Polyethylene/Aluminum/Crosslinked Polyethylene (PEX-AL-PEX) pressure pipe stands out for its unique flexibility, durability, and superior resistance to corrosion and scaling. Manufactured as a multi-layered composite, this piping system leverages the combined advantages of metal and plastic, offering enhanced dimensional stability and pressure tolerance while remaining lightweight and easy to install.
This comprehensive blog post delves into the standard specifications governing PEX-AL-PEX pressure pipes. We will detail the material composition, dimensional tolerances, physical and mechanical properties, testing methods, joining systems, and typical applications. Special emphasis is placed on ASTM F1281, one of North America's most widely recognized standards. Data tables are provided to aid engineers, contractors, and inspectors in quickly referencing essential parameters and compliance benchmarks.
What is a PEX-AL-PEX Pressure Pipe?

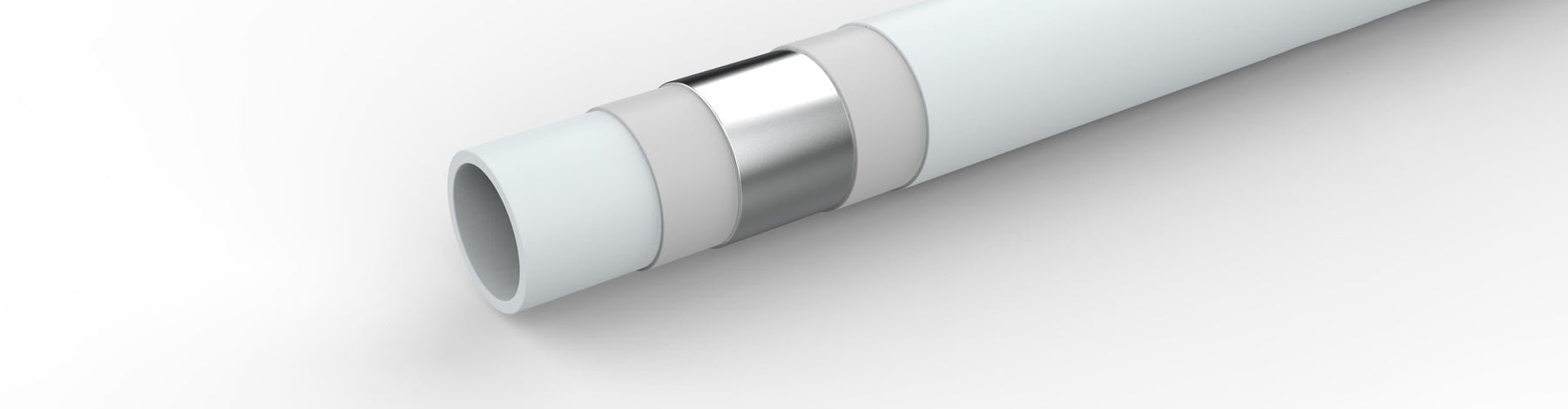

PEX-AL-PEX pressure pipe is a five-layer composite pipe consisting of:
- Inner Layer: Crosslinked Polyethylene (PEX)
- Adhesive Layer: Bonds PEX to aluminum
- Aluminum Core: Longitudinally overlapped or butt-welded
- Adhesive Layer: Bonds aluminum to outer PEX
- Outer Layer: Crosslinked Polyethylene (PEX)
This construction results in a piping product that combines the corrosion resistance and flexibility of PEX with the strength, oxygen barrier, and dimensional stability of an aluminum core.
Applicable Standards
While various international standards govern composite piping systems, the most widely adopted standard for PEX-AL-PEX in North America is ASTM F1281.
Scope of ASTM F1281
- Applies to PEX-AL-PEX pressure pipes for potable water, hydronic heating, and plumbing systems
- Covers nominal pipe sizes from 3/8 in. to 2 in.
- Specifies performance requirements at operating pressures of 160 psi at 73°F and 100 psi at 180°F
Other international standards include:
- ISO 21003 (Europe and international)
- CSA B137.10 (Canada)
- AS/NZS 4176 (Australia/New Zealand)
Material Requirements
Table 1: Material Specification
| Component | Material Type | Requirements |
|---|---|---|
| Inner & Outer PEX | Crosslinked HDPE (PEX-a, PEX-b, PEX-c) | Minimum 65% crosslinking by ASTM F876/F877 |
| Aluminum Core | Aluminum Alloy | Longitudinally overlapped/butt-welded |
| Adhesive Layers | Polymeric Adhesive | Chemical resistance and bond integrity |
Dimensional Requirements
Table 2: Dimensional Specifications (ASTM F1281)
| Nominal Size (in.) | Min. Wall Thickness (in.) | Min. OD (in.) | Max. Ovality (%) |
|---|---|---|---|
| 3/8 | 0.070 | 0.500 | 5 |
| 1/2 | 0.070 | 0.625 | 5 |
| 5/8 | 0.080 | 0.750 | 5 |
| 3/4 | 0.100 | 0.875 | 5 |
| 1 | 0.110 | 1.125 | 5 |
| 1-1/4 | 0.130 | 1.375 | 5 |
| 1-1/2 | 0.150 | 1.625 | 5 |
| 2 | 0.200 | 2.125 | 5 |
Physical and Mechanical Properties
Table 3: Performance Characteristics (ASTM F1281)
| Property | Test Method | Requirement |
|---|---|---|
| Hydrostatic Strength | ASTM D1598 (1000 hours at 180°F) | ≥ 480 psi |
| Short-term Burst Pressure | ASTM D1599 | ≥ 3× rated pressure |
| Tensile Strength at Yield | ASTM D638 | ≥ 1600 psi |
| Elongation at Break | ASTM D638 | ≥ 200% |
| Oxygen Transmission Rate | DIN 4726 | ≤ 0.1 g/m³/day |
| Thermal Cycling Resistance | ASTM F876 (10,000 cycles) | No leakage, delamination, or cracks |
Testing Procedures
The integrity and compliance of PEX-AL-PEX pressure pipe systems are ensured through rigorous testing, as outlined below:
Table 4: Test Procedures
| Test Type | Test Method | Purpose |
|---|---|---|
| Dimensional Inspection | ASTM D2122 | Verify OD, wall thickness, and ovality |
| Hydrostatic Pressure Test | ASTM D1598 | Long-term pressure performance |
| Burst Pressure Test | ASTM D1599 | Short-term failure pressure |
| Oxygen Transmission Test | DIN 4726 | Evaluate oxygen barrier effectiveness |
| Thermal Cycling Test | ASTM F876 | Simulate real service conditions |
| Adhesion Test | Proprietary | Ensure interlayer bond strength |
| Minimum Bend Radius Test | ASTM F1281 | Verify flexibility and mechanical integrity |
Joining Systems
PEX-AL-PEX systems offer multiple joining technologies for installation flexibility:
Table 5: Joining Methods
| Joining System | Description | Typical Applications |
|---|---|---|
| Compression Fittings | Brass or polymer with ferrules | Potable water, hydronic heating |
| Press Fittings | Stainless steel sleeve crimped overfitting | High-reliability applications |
| Push-Fit Fittings | Tool-free mechanical gripping + O-ring | Repair, retrofits, small systems |
| Crimp/Clamp Systems | PEX rings with appropriate fittings | Residential portable systems |
Advantages of PEX-AL-PEX Pipe
PEX-AL-PEX combines the benefits of metal and plastic pipes:
- Excellent dimensional stability
- Low thermal expansion (0.025 in/ft/°F)
- High corrosion and scaling resistance
- Lightweight and flexible
- Effective oxygen barrier for hydronic systems
- Quick, clean installation
Applications
- Potable water distribution systems
- Hydronic radiant heating and cooling systems
- Snow and ice melt systems
- Domestic hot water recirculation
- Compressed air (with certified fittings)
- Plumbing retrofits and repairs
International Standard Comparisons
Table 6: International Specification Equivalents
| Standard | Region | Equivalent Pressure/Temperature Ratings |
|---|---|---|
| ASTM F1281 | USA | 160 psi @ 73°F / 100 psi @ 180°F |
| CSA B137.10 | Canada | 160 psi @ 73°F / 100 psi @ 180°F |
| ISO 21003 | International (Europe) | Class 2/4: 87 psi @ 140°F / 58 psi @ 185°F |
| AS/NZS 4176 | Australia/New Zealand | 1.6 MPa @ 20°C / 1.0 MPa @ 80°C |
Failure Modes and Prevention
Common issues and their mitigation:
- Delamination: Controlled by stringent adhesion testing
- Oxidation in hydronic systems: Prevented by an aluminum barrier and DIN 4726 compliance
- Kinking during installation: Minimized by adhering to a minimum bend radius
- Improper joint assembly: Avoided through installer training and quality fittings
Installation Practices
Best practices include:
- Use appropriate joining system for application and pipe size
- Observe minimum bend radius (typically 5× OD)
- Support pipe at recommended intervals (per ASTM F1281)
- Use manufacturer-approved fittings and tools
- Pressure-test system before covering pipes
Conclusion
PEX-AL-PEX pressure pipes represent a technically advanced, highly reliable piping solution that excels in potable water, hydronic heating, and HVAC systems. The ASTM F1281 specification ensures a high quality and performance standard through defined material requirements, dimensional tolerances, mechanical and physical properties, and mandatory testing.
The composite nature of PEX-AL-PEX delivers the best of both worlds — the durability and flexibility of crosslinked polyethylene and aluminum's dimensional stability and barrier properties. With rigorous adherence to standard specifications and best installation practices, PEX-AL-PEX systems offer decades of reliable residential, commercial, and industrial service.
